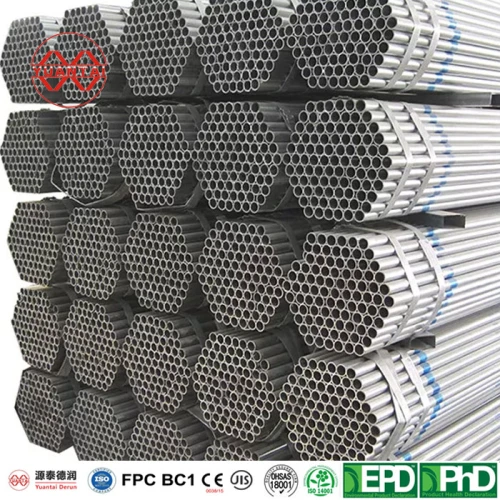

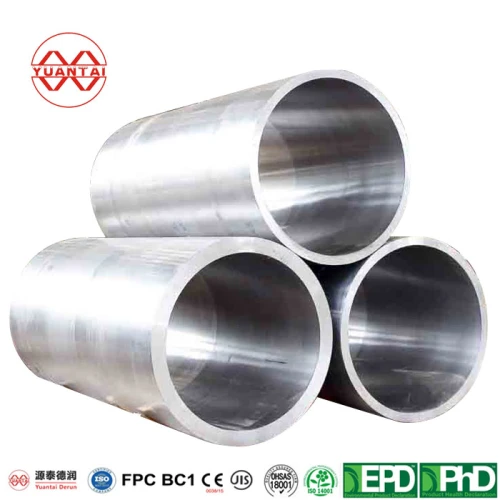

round steel tube factory yuantaiderun(can oem odm obm)
- Model
- ytdr-shs-005
Item specifics
- OD
- Square:10*10-1000*1000mm r:10*15-800*1100mm
- Thickness
- 0.5-60mm
- surface
- galvanized or black painted or oiled
- Length
- 3-12 meter or On demand customization
- Port
- Tianjin xin port
- Brand
- Yuantaiderun
- oem/odm/obm or not
- accept
- Delivery time
- 7-30 days
- Payment method
- TT/LC
- WELD
- ERW,seamless,LSAW
Review
Description
1. 100% after-sales quality and quantity assurance.
2. Professional sales manager quickly reply within 24 hours.
3. Large Stock for regular sizes.
4. Free sample 20cm high quality.
5. Strong produce capability and capital flow.
DIMENSIONS OF INCH STEEL TUBES
OD(outer diameter) | wall thickness | weight | ||||
inch | millimeter. | unit | millimeter. | inch. | Kg/m. | Pounds per foot. |
1/2” | 21.3 | 5S | 1.05 | 0.042 | 0.53 | 0.36 |
1/2” | 21.3 | 10S | 2.11 | 0.083 | 1.01 | 0.68 |
1/2” | 21.3 | STD-40 | 2.77 | 0.109 | 1.28 | 0.86 |
1/2” | 21.3 | XS-80 | 3.73 | 0.147 | 1.63 | 1.10 |
1/2” | 21.3 | 160 | 4.78 | 0.188 | 1.97 | 1.33 |
1/2” | 21.3 | XXS | 7.47 | 0.294 | 2.57 | 1.73 |
3/4” | 26.7 | 5S | 1.65 | 0.065 | 1.03 | 0.69 |
3/4” | 26.7 | 10S | 2.11 | 0.083 | 1.29 | 0.87 |
3/4” | 26.7 | STD-40 | 2.87 | 0.113 | 1.70 | 1.14 |
3/4” | 26.7 | XS-80 | 3.91 | 0.154 | 2.22 | 1.49 |
3/4” | 26.7 | 160 | 5.56 | 0.219 | 2.93 | 1.97 |
3/4” | 26.7 | XXS | 7.82 | 0.308 | 3.68 | 2.48 |
1” | 33.4 | 5S | 1.65 | 0.065 | 1.31 | 0.88 |
1” | 33.4 | 10S | 2.77 | 0.109 | 2.12 | 1.42 |
1” | 33.4 | STD-40 | 3.38 | 0.133 | 2.53 | 1.70 |
1” | 33.4 | XS-80 | 4.55 | 0.179 | 3.27 | 2.18 |
1” | 33.4 | 160 | 6.35 | 0.250 | 4.28 | 2.88 |
1” | 33.4 | XXS | 9.09 | 0.358 | 5.51 | 3.71 |
1 1/4” | 42.2 | 5S | 1.65 | 0.065 | 1.67 | 1.12 |
1 1/4” | 42.2 | 10S | 2.77 | 0.109 | 2.72 | 1.83 |
1 1/4” | 42.2 | STD-40 | 3.56 | 0.140 | 3.43 | 2.31 |
1 1/4” | 42.2 | XS-80 | 4.85 | 0.191 | 4.51 | 3.03 |
1 1/4” | 42.2 | 160 | 6.35 | 0.250 | 5.67 | 3.81 |
1 1/4” | 42.2 | XXS | 9.70 | 0.382 | 7.85 | 5.28 |
1 1/2” | 48.3 | 5S | 1.65 | 0.065 | 1.92 | 1.29 |
1 1/2” | 48.3 | 10S | 2.77 | 0.109 | 3.14 | 2.11 |
1 1/2” | 48.3 | STD-40 | 3.68 | 0.145 | 4.09 | 2.75 |
1 1/2” | 48.3 | XS-80 | 5.08 | 0.200 | 5.47 | 3.68 |
1 1/2” | 48.3 | 160 | 7.14 | 0.281 | 7.32 | 4.92 |
1 1/2” | 48.3 | XXS | 10.15 | 0.400 | 9.65 | 6.49 |
2” | 60.3 | 5S | 1.65 | 0.065 | 2.41 | 1.62 |
2” | 60.3 | 2.11 | 0.083 | 3.06 | 2.06 | |
2” | 60.3 | 10S | 2.77 | 0.109 | 3.97 | 2.67 |
2” | 60.3 | 3.18 | 0.125 | 4.52 | 3.04 | |
2” | 60.3 | STD-40 | 3.91 | 0.154 | 5.49 | 3.69 |
2” | 60.3 | XS-80 | 5.54 | 0.218 | 7.56 | 5.08 |
2” | 60.3 | 160 | 8.74 | 0.344 | 11.23 | 7.55 |
2” | 60.3 | XXS | 11.07 | 0.436 | 13.58 | 9.13 |
2 1/2” | 73.0 | 5S | 2.11 | 0.083 | 3.73 | 2.51 |
2 1/2” | 73.0 | 10S | 3.05 | 0.120 | 5.32 | 3.57 |
2 1/2” | 73.0 | 30 | 4.78 | 0.188 | 8.12 | 5.46 |
2 1/2” | 73.0 | STD-40 | 5.16 | 0.203 | 8.72 | 5.86 |
2 1/2” | 73.0 | XS-80 | 7.01 | 0.276 | 11.52 | 7.74 |
2 1/2” | 73.0 | 160 | 9.53 | 0.375 | 15.08 | 10.14 |
2 1/2” | 73.0 | XXS | 14.02 | 0.552 | 20.60 | 13.84 |
3” | 88.9 | 5S | 2.11 | 0.083 | 4.56 | 3.07 |
3” | 88.9 | 2.77 | 0.109 | 5.95 | 4.00 | |
3” | 88.9 | 10S | 3.05 | 0.120 | 6.52 | 4.38 |
3” | 88.9 | 3.18 | 0.125 | 6.79 | 4.56 | |
3” | 88.9 | 3.58 | 0.141 | 7.61 | 5.12 | |
3” | 88.9 | 3.96 | 0.156 | 8.38 | 5.63 | |
3” | 88.9 | STD-40 | 5.49 | 0.216 | 11.41 | 7.67 |
3” | 88.9 | XS-80 | 7.62 | 0.300 | 15.43 | 10.37 |
3” | 88.9 | 160 | 11.13 | 0.438 | 21.56 | 14.49 |
3” | 88.9 | XXS | 15.24 | 0.600 | 27.96 | 18.79 |
3 1/2” | 101.6 | 5S | 2.11 | 0.083 | 5.23 | 3.52 |
3 1/2” | 101.6 | 10S | 3.05 | 0.120 | 7.49 | 5.03 |
3 1/2” | 101.6 | 30 | 4.78 | 0.188 | 11.53 | 7.75 |
3 1/2” | 101.6 | STD-40 | 5.74 | 0.226 | 13.71 | 9.21 |
3 1/2” | 101.6 | XS-80 | 8.08 | 0.318 | 18.83 | 12.65 |
4” | 114.3 | 5S | 2.11 | 0.083 | 5.90 | 3.97 |
4” | 114.3 | 10S | 3.05 | 0.120 | 8.46 | 5.68 |
4” | 114.3 | 3.18 | 0.125 | 8.81 | 5.92 | |
4” | 114.3 | 3.96 | 0.156 | 10.89 | 7.32 | |
4” | 114.3 | 4.37 | 0.172 | 11.97 | 8.05 | |
4” | 114.3 | 4.78 | 0.188 | 13.04 | 8.76 | |
4” | 114.3 | 5.16 | 0.203 | 14.03 | 9.43 | |
4” | 114.3 | 5.56 | 0.219 | 15.06 | 10.62 | |
4” | 114.3 | STD-40 | 6.02 | 0.237 | 16.24 | 10.91 |
4” | 114.3 | 6.35 | 0.250 | 17.08 | 11.48 | |
4” | 114.3 | 7.14 | 0.281 | 19.06 | 12.81 | |
4” | 114.3 | 7.92 | 0.312 | 20.99 | 14.11 | |
4” | 114.3 | XS-80 | 8.56 | 0.337 | 22.55 | 15.15 |
4” | 114.3 | 120 | 11.13 | 0.438 | 28.61 | 19.23 |
4” | 114.3 | 160 | 13.49 | 0.531 | 33.88 | 22.77 |
4” | 114.3 | XXS | 17.12 | 0.674 | 41.45 | 27.85 |
5” | 141.3 | 3.96 | 0.156 | 13.55 | 9.11 | |
5” | 141.3 | 4.78 | 0.188 | 16.26 | 10.93 | |
5” | 141.3 | 5.56 | 0.219 | 18.80 | 12.63 | |
5” | 141.3 | STD-40 | 6.55 | 0.258 | 21.99 | 14.78 |
5” | 141.3 | 7.14 | 0.281 | 23.86 | 16.04 | |
5” | 141.3 | 7.92 | 0.312 | 26.32 | 17.69 | |
5” | 141.3 | XS-80 | 9.53 | 0.375 | 31.28 | 21.02 |
5” | 141.3 | 120 | 12.70 | 0.500 | 40.69 | 27.34 |
5” | 141.3 | 160 | 15.88 | 0.625 | 49.62 | 33.34 |
5” | 141.3 | XXS | 19.05 | 0.750 | 58.01 | 38.98 |
6” | 168.3 | 4.37 | 0.172 | 17.84 | 11.99 | |
6” | 168.3 | 4.78 | 0.188 | 19.47 | 13.09 | |
6” | 168.3 | 5.16 | 0.203 | 20.97 | 14.09 | |
6” | 168.3 | 5.56 | 0.219 | 22.54 | 15.15 | |
6” | 168.3 | 6.35 | 0.250 | 25.62 | 17.22 | |
6” | 168.3 | STD-40 | 7.11 | 0.280 | 28.55 | 19.19 |
6” | 168.3 | 7.92 | 0.312 | 31.64 | 21.26 | |
6” | 168.3 | 8.74 | 0.344 | 34.74 | 23.35 | |
6” | 168.3 | 9.53 | 0.375 | 37.69 | 25.33 | |
6” | 168.3 | XS-80 | 10.97 | 0.432 | 42.99 | 28.89 |
6” | 168.3 | 12.70 | 0.500 | 49.23 | 33.08 | |
6” | 168.3 | 120 | 14.27 | 0.562 | 54.75 | 36.79 |
6” | 168.3 | 15.88 | 0.625 | 60.30 | 40.52 | |
6” | 168.3 | 160 | 18.26 | 0.719 | 68.25 | 45.86 |
6” | 168.3 | 19.05 | 0.750 | 70.85 | 47.61 | |
6” | 168.3 | XXS | 21.95 | 0.864 | 80.02 | 53.77 |
6” | 168.3 | 22.23 | 0.875 | 80.87 | 54.34 | |
8” | 219.1 | 4.78 | 0.188 | 25.52 | 17.15 | |
8” | 219.1 | 5.16 | 0.203 | 27.50 | 18.48 | |
8” | 219.1 | 5.56 | 0.219 | 29.58 | 19.88 | |
8” | 219.1 | 20 | 6.35 | 0.250 | 33.65 | 22.61 |
8” | 219.1 | 30 | 7.04 | 0.277 | 37.19 | 24.99 |
8” | 219.1 | 7.92 | 0.312 | 41.66 | 28.00 | |
8” | 219.1 | STD-40 | 8.18 | 0.322 | 42.98 | 28.88 |
8” | 219.1 | 8.74 | 0.344 | 45.80 | 30.78 | |
8” | 219.1 | 9.53 | 0.375 | 49.75 | 33.43 | |
8” | 219.1 | 60 | 10.31 | 0.406 | 53.62 | 36.03 |
8” | 219.1 | 11.13 | 0.438 | 57.66 | 38.75 | |
8” | 219.1 | XS-80 | 12.70 | 0.500 | 65.30 | 43.88 |
8” | 219.1 | 14.27 | 0.562 | 72.81 | 48.93 | |
8” | 219.1 | 100 | 15.09 | 0.594 | 76.69 | 51.53 |
8” | 219.1 | 15.88 | 0.625 | 80.31 | 54.02 | |
8” | 219.1 | 120 | 18.26 | 0.719 | 91.36 | 61.39 |
8” | 219.1 | 19.05 | 0.750 | 94.93 | 63.79 | |
8” | 219.1 | 140 | 20.62 | 0.812 | 101.95 | 68.51 |
8” | 219.1 | XXS | 22.23 | 0.875 | 108.96 | 73.22 |
8” | 219.1 | 160 | 23.01 | 0.906 | 112.40 | 75.59 |
8” | 219.1 | 25.40 | 1.000 | 122.56 | 82.36 | |
10” | 273.0 | 4.78 | 0.188 | 31.94 | 21.46 | |
10” | 273.0 | 5.16 | 0.203 | 34.43 | 23.14 | |
10” | 273.0 | 5.56 | 0.219 | 37.04 | 24.89 | |
10” | 273.0 | 20 | 6.35 | 0.250 | 42.18 | 28.34 |
10” | 273.0 | 7.09 | 0.279 | 46.97 | 31.56 | |
10” | 273.0 | 30 | 7.80 | 0.307 | 51.53 | 34.63 |
10” | 273.0 | 8.74 | 0.344 | 57.34 | 38.66 | |
10” | 273.0 | STD-40 | 9.27 | 0.365 | 60.90 | 40.92 |
10” | 273.0 | 11.13 | 0.438 | 72.61 | 48.79 | |
10” | 273.0 | XS-60 | 12.70 | 0.500 | 82.35 | 55.34 |
10” | 273.0 | 14.27 | 0.562 | 91.92 | 61.80 | |
10” | 273.0 | 80 | 15.09 | 0.594 | 96.95 | 65.15 |
10” | 273.0 | 15.88 | 0.625 | 101.71 | 68.35 | |
10” | 273.0 | 100 | 18.26 | 0.719 | 115.87 | 77.86 |
10” | 273.0 | 20.62 | 0.812 | 129.64 | 87.11 | |
10” | 273.0 | 120 | 21.44 | 0.844 | 134.35 | 90.28 |
10” | 273.0 | 22.23 | 0.875 | 138.87 | 93.32 | |
10” | 273.0 | 23.83 | 0.938 | 147.91 | 99.39 | |
10” | 273.0 | XXS-140 | 25.40 | 1.000 | 156.66 | 105.22 |
10” | 273.0 | 160 | 28.58 | 1.125 | 174.01 | 116.93 |
10” | 273.0 | 31.75 | 1.250 | 190.81 | 128.22 | |
12” | 323.8 | 20 | 6.35 | 0.250 | 50.22 | 33.75 |
12” | 323.8 | 7.14 | 0.281 | 56.32 | 37.85 | |
12” | 323.8 | 7.92 | 0.312 | 62.32 | 41.88 | |
12” | 323.8 | 30 | 8.38 | 0.330 | 65.85 | 44.23 |
12” | 323.8 | 8.74 | 0.344 | 68.60 | 46.10 | |
12” | 323.8 | STD | 9.53 | 0.375 | 74.61 | 50.13 |
12” | 323.8 | 40 | 10.31 | 0.406 | 80.51 | 54.10 |
12” | 323.8 | 11.13 | 0.438 | 86.69 | 58.25 | |
12” | 323.8 | XS | 12.70 | 0.500 | 98.42 | 66.14 |
12” | 323.8 | 60 | 14.27 | 0.562 | 110.03 | 73.94 |
12” | 323.8 | 15.88 | 0.625 | 121.81 | 81.85 | |
12” | 323.8 | 80 | 17.48 | 0.688 | 133.38 | 89.63 |
12” | 323.8 | 19.05 | 0.750 | 14.62 | 97.18 | |
12” | 323.8 | 20.62 | 0.812 | 155.73 | 104.65 | |
12” | 323.8 | 100 | 21.44 | 0.844 | 161.48 | 108.51 |
12” | 323.8 | 23.83 | 0.938 | 178.07 | 119.65 | |
12” | 323.8 | XXS-120 | 25.40 | 1.000 | 188.80 | 126.87 |
12” | 323.8 | 26.97 | 1.062 | 199.42 | 134.00 | |
12” | 323.8 | 140 | 28.58 | 1.125 | 210.18 | 141.23 |
12” | 323.8 | 31.75 | 1.250 | 230.98 | 155.21 | |
12” | 323.8 | 160 | 33.32 | 1.312 | 241.10 | 162.01 |
14” | 355.6 | 10 | 6.35 | 0.250 | 55.25 | 37.13 |
14” | 355.6 | 20 | 7.92 | 0.312 | 68.60 | 46.1 |
14” | 355.6 | 8.74 | 0.344 | 75.52 | 50.75 | |
14” | 355.6 | STD-30 | 9.53 | 0.375 | 82.16 | 55.21 |
14” | 355.6 | 10.31 | 0.406 | 88.68 | 59.59 | |
14” | 355.6 | 40 | 11.13 | 0.438 | 95.51 | 64.18 |
14” | 355.6 | XS | 12.70 | 0.500 | 108.48 | 72.90 |
14” | 355.6 | 14.27 | 0.562 | 121.33 | 81.53 | |
14” | 355.6 | 60 | 15.09 | 0.594 | 128.00 | 86.01 |
14” | 355.6 | 80 | 19.05 | 0.750 | 159.71 | 107.32 |
14” | 355.6 | 100 | 23.83 | 0.938 | 196.94 | 132.34 |
14” | 355.6 | 25.40 | 1.000 | 208.92 | 140.39 | |
14” | 355.6 | 26.97 | 1.062 | 220.78 | 148.36 | |
14” | 355.6 | 120 | 27.79 | 1.094 | 226.93 | 152.49 |
14” | 355.6 | 140 | 31.75 | 1.250 | 256.13 | 172.11 |
14” | 355.6 | 160 | 35.71 | 1.406 | 284.56 | 191.21 |
16” | 406.4 | 10 | 6.35 | 0.250 | 63.28 | 42.52 |
16” | 406.4 | 7.14 | 0.281 | 71.01 | 47.72 | |
16” | 406.4 | 20 | 7.92 | 0.312 | 78.62 | 52.83 |
16” | 406.4 | 8.74 | 0.344 | 86.58 | 58.18 | |
16” | 406.4 | STD-30 | 9.53 | 0.357 | 94.21 | 63.31 |
16” | 406.4 | 10.31 | 0.406 | 101.72 | 68.36 | |
16” | 406.4 | 11.13 | 0.438 | 109.59 | 73.64 | |
16” | 406.4 | XS-40 | 12.70 | 0.500 | 124.55 | 83.69 |
16” | 406.4 | 14.27 | 0.562 | 139.39 | 93.67 | |
16” | 406.4 | 15.88 | 0.625 | 154.48 | 103.80 | |
16” | 406.4 | 60 | 16.66 | 0.656 | 161.74 | 108.69 |
16” | 406.4 | 17.48 | 0.688 | 169.35 | 113.80 | |
16” | 406.4 | 19.05 | 0.750 | 183.81 | 123.52 | |
16” | 406.4 | 20.62 | 0.812 | 198.15 | 133.15 | |
16” | 406.4 | 80 | 21.44 | 0.844 | 205.60 | 138.15 |
16” | 406.4 | 25.40 | 1.000 | 241.06 | 161.98 | |
16” | 406.4 | 100 | 26.19 | 1.031 | 248.05 | 166.68 |
16” | 406.4 | 120 | 30.96 | 1.219 | 289.54 | 194.56 |
16” | 406.4 | 31.75 | 1.250 | 296.31 | 199.11 | |
16” | 406.4 | 140 | 36.53 | 1.438 | 336.57 | 226.16 |
16” | 406.4 | 160 | 40.49 | 1.594 | 369.06 | 247.99 |
18” | 457 | 20 | 7.92 | 0.312 | 88.60 | 59.54 |
18” | 457 | 8.74 | 0.344 | 97.59 | 65.58 | |
18” | 457 | STD | 9.53 | 0.375 | 106.23 | 71.38 |
18” | 457 | 10.31 | 0.406 | 114.72 | 77.09 | |
18” | 457 | 30 | 11.13 | 0.438 | 123.62 | 83.07 |
18” | 457 | XS | 12.70 | 0.500 | 140.56 | 94.45 |
18” | 457 | 40 | 14.27 | 0.562 | 157.38 | 105.75 |
18” | 457 | 15.88 | 0.625 | 174.50 | 117.25 | |
18” | 457 | 17.48 | 0.688 | 191.38 | 128.60 | |
18” | 457 | 60 | 19.05 | 0.750 | 207.82 | 139.65 |
18” | 457 | 80 | 23.83 | 0.938 | 257.13 | 172.78 |
18” | 457 | 25.40 | 1.000 | 273.08 | 183.50 | |
18” | 457 | 26.97 | 1.062 | 288.91 | 194.14 | |
18” | 457 | 28.58 | 1.125 | 305.01 | 204.96 | |
18” | 457 | 100 | 29.36 | 1.156 | 312.76 | 210.16 |
18” | 457 | 30.18 | 1.188 | 320.88 | 215.62 | |
18” | 457 | 31.75 | 1.250 | 336.33 | 226.00 | |
18” | 457 | 120 | 34.93 | 1.375 | 367.25 | 246.78 |
18” | 457 | 140 | 39.67 | 1.562 | 412.40 | 277.12 |
18” | 457 | 160 | 45.24 | 1.781 | 464.03 | 311.81 |
20” | 508 | 8.74 | 0.344 | 108.70 | 73.04 | |
20” | 508 | STD-20 | 9.53 | 0.375 | 118.33 | 79.51 |
20” | 508 | 10.31 | 0.406 | 127.82 | 85.89 | |
20” | 508 | 11.13 | 0.438 | 137.76 | 92.57 | |
20” | 508 | XS-30 | 12.70 | 0.500 | 156.70 | 105.3 |
20” | 508 | 14.27 | 0.562 | 175.51 | 117.94 | |
20” | 508 | 40 | 15.09 | 0.594 | 185.28 | 124.50 |
20” | 508 | 15.88 | 0.625 | 194.67 | 130.81 | |
20” | 508 | 17.48 | 0.688 | 213.59 | 143.53 | |
20” | 508 | 19.05 | 0.750 | 232.03 | 155.92 | |
20” | 508 | 60 | 20.62 | 0.812 | 250.34 | 168.22 |
20” | 508 | 25.40 | 1.000 | 305.35 | 205.18 | |
20” | 508 | 80 | 26.19 | 1.031 | 314.33 | 211.22 |
20” | 508 | 30.18 | 1.188 | 359.22 | 241.38 | |
20” | 508 | 31.75 | 1.250 | 376.66 | 253.10 | |
20” | 508 | 100 | 32.54 | 1.281 | 385.40 | 258.97 |
20” | 508 | 120 | 38.10 | 1.500 | 445.97 | 299.67 |
20” | 508 | 140 | 44.45 | 1.750 | 513.27 | 344.90 |
20” | 508 | 160 | 50.01 | 1.969 | 570.54 | 383.38 |
22” | 559 | 8.74 | 0.344 | 119.80 | 80.5 | |
22” | 559 | STD-20 | 9.53 | 0.375 | 130.44 | 87.65 |
22” | 559 | XS-30 | 12.70 | 0.500 | 172.83 | 116.14 |
22” | 559 | 15.88 | 0.625 | 214.84 | 144.37 | |
22” | 559 | 17.48 | 0.688 | 235.79 | 158.44 | |
22” | 559 | 19.05 | 0.750 | 256.23 | 172.18 | |
22” | 559 | 20.62 | 0.812 | 276.54 | 185.83 | |
24” | 610 | 8.74 | 0.344 | 130.90 | 87.96 | |
24” | 610 | STD-20 | 9.53 | 0.375 | 142.55 | 95.79 |
24” | 610 | XS | 12.70 | 0.500 | 188.96 | 126.98 |
24” | 610 | 30 | 14.27 | 0.562 | 211.76 | 142.30 |
24” | 610 | 15.88 | 0.625 | 233.02 | 157.93 | |
24” | 610 | 40 | 17.48 | 0.688 | 258.00 | 173.37 |
24” | 610 | 19.05 | 0.750 | 280.43 | 188.44 | |
24” | 610 | 20.62 | 0.812 | 302.73 | 203.42 | |
24” | 610 | 60 | 24.61 | 0.969 | 358.87 | 241.15 |
24” | 610 | 25.40 | 1.000 | 369.89 | 248.55 | |
24” | 610 | 26.97 | 1.062 | 391.69 | 263.20 | |
24” | 610 | 30.18 | 1.188 | 435.90 | 292.91 | |
24” | 610 | 80 | 30.96 | 1.219 | 442.86 | 297.59 |
24” | 610 | 100 | 38.89 | 1.531 | 553.26 | 371.72 |
24” | 610 | 120 | 46.02 | 1.812 | 646.52 | 434.44 |
24” | 610 | 140 | 52.37 | 2.062 | 727.45 | 488.82 |
26” | 660 | STD | 9.53 | 0.375 | 154.42 | 103.77 |
26” | 660 | XS-20 | 12.70 | 0.500 | 204.78 | 137.61 |
26” | 660 | 17.48 | 0.688 | 279.77 | 188.00 | |
26” | 660 | 19.05 | 0.750 | 304.15 | 204.38 | |
28” | 711 | STD | 9.53 | 0.375 | 166.52 | 118.90 |
28” | 711 | XS-20 | 12.70 | 0.500 | 220.91 | 148.44 |
28” | 711 | 17.48 | 0.688 | 301.98 | 202.92 | |
28” | 711 | 19.05 | 0.750 | 328.35 | 220.64 | |
30” | 762 | STD | 9.53 | 0.375 | 178.63 | 120.03 |
30” | 762 | XS-20 | 12.70 | 0.500 | 237.05 | 159.29 |
32” | 813 | STD | 9.53 | 0.375 | 190.74 | 128.17 |
32” | 813 | XS-20 | 12.70 | 0.500 | 253.18 | 170.13 |
Non-standard size | standard size | thickness | non-standard size | standard size | thickness |
1.0 | 1.5 | ||||
1.2 | 1.7 | ||||
1.3 | 40*135 | 50*150 | 2.0 | ||
19*19 | 20*20 | 1.4 | 50*140 | 60*140 | 2.2 |
1.5 | 60*130 | 80*120 | 2.5~5.0 | ||
153 | 1.7 | 75*125 | 100*100 | 5.25~6.0 | |
2.0 | 6.5~9.75 | ||||
1.0 | 395 | 11.5~16 | |||
1.2 | 50*160 | 2.5 | |||
1.3 | 60*150 | 60*160 | 2.75 | ||
25*25 | 1.4 | 60*180 | 80*140 | 3.0~4.0 | |
1.5 | 65*180 | 80*160 | 4.25~4.75 | ||
153 | 20*30 | 1.7 | 70*150 | 100*150 | 5.25~6.0 |
1.8 | 90*150 | 120*120 | 6.5~7.75 | ||
2.0 | 90*160 |
110*110
|
9.5~9.75
|
||
2.2 | 100*120 |
120*180
|
10.5~11.75
|
||
2.5~3.0 | 100*125 |
125*125
|
12.5~12.75
|
||
1.0 | 100*140 | 470 | 16~30 | ||
20*40 | 1.2 | 60*170 | 75*150 | 2.5 | |
20*50 | 1.3 | 70*160 70*200 | 100*200 | 2.75 | |
25*40 | 1.4 | 80*150 | 140*140 | 3.0~5.75 | |
32*32 | 1.5 | 80*180 | 150*150 | 7.5~9.75 | |
30*30 | 1.7 | 127*127 | 130*130 | 10.5~11.75 | |
35*35 | 1.8 | 570 | 12.5~15 | ||
30*40 | 2.0 | 60*200 | 100*250 | 2.5 | |
2.2 | 60*220 | 160*160 | 2.75~3.25 | ||
2.5~3.0 | 80*200 | 180*180 | 3.5~5.0 | ||
232 | 3.5~3.75 | 80*220 | 140*180 | 5.25~7.75 | |
1.2 | 100*180 | 150*170 | 9.5~11.75 | ||
1.3 | 120*160 | 150*180 | 12.5~15.75 | ||
1.4 | 120*200 | 150*200 | 16~30 | ||
20*60 | 25*50 | 1.5 | 100*350 | 2.75 | |
20*80 | 30*50 | 1.7 | 125*250 | 3.0~3.25 | |
25*65 | 30*60 | 1.8 | 130*250 | 100*300 | 3.5~9.75 |
30*70 | 40*40 | 2.0 | 135*135 | 150*250 | 11.5~11.75 |
35*60 | 40*50 | 2.2 | 140*240 | 200*200 | 12.5~14.75 |
38*38 | 40*60 | 2.5~4.0 | 150*220 | 200*250 | 15.5~15.75 |
45*45 | 50*50 | 4.25~5.0 | 225*225 | 770 | 16~30 |
5.25~5.75 | 100*400 | 150*300 | 3.5~4.0 | ||
153 | 5.75~6.0 | 130*300 | 200*300 | 4.5~7.75 | |
1.3 | 150*350 | 250*250 | 9.5~11.75 | ||
1.4 | 200*280 | 180*300 | 12.5~14.75 | ||
30*100 | 40*80 | 1.5 | 220*220 | 1010 | 15.5~17.75 |
40*70 | 40*100 | 1.7 | 200*350 | 200*400 | 4.75~11.75 |
40*90 | 50*70 | 1.8 | 250*350 | 250*300 | 12.5~14.75 |
50*60 | 50*80 | 2.0 | 300*300 | 15.5~17.75 | |
50*75 | 60*60 | 2.2 | 200*500 | 4.75~11.75 | |
50*90 | 60*80 | 2.5~4.0 | 300*320 | 250*450 | 12.5~14.75 |
55*55 | 70*70 | 4.25~5.0 | 300*350 | 300*400 | 15.5~17.75 |
65*65 | 5.25~5.75 | 300*5350 | 18~30 | ||
232 | 5.75~6.0 | 200*450 | 200*600 | 4.5~5.75 | |
1.3 | 250*400 | 280*280 | 6.5~11.75 | ||
40*120 | 50*100 | 1.5 | 250*500 | 300*500 | 12.5~14.75 |
40*140 | 60*90 | 1.7 | 300*450 | 350*400 | 15.5~17.75 |
50*110 | 60*100 | 1.8 | 400*400 | 18~30 | |
50*120 | 60*120 | 2.0 | 300*650 | 300*600 | 4.5~7.75 |
50*125 | 75*75 | 2.2 | 400*500 | 9.5~9.75 | |
70*100 | 80*80 | 2.5~4.0 | 300*700 | 400*600 | 11.5~13.75 |
85*85 | 80*100 | 4.25~5.0 | 450*450 | 14.5~15.75 | |
90*90 | 5.25~5.75 | 320*320 | 500*500 | 16.5~17.75 | |
312 | 7.5~9.75 | 18~30 | |||
1300*1300 | 70~80 | ||||
The length,width and thickness of other specifications can be customized. |
